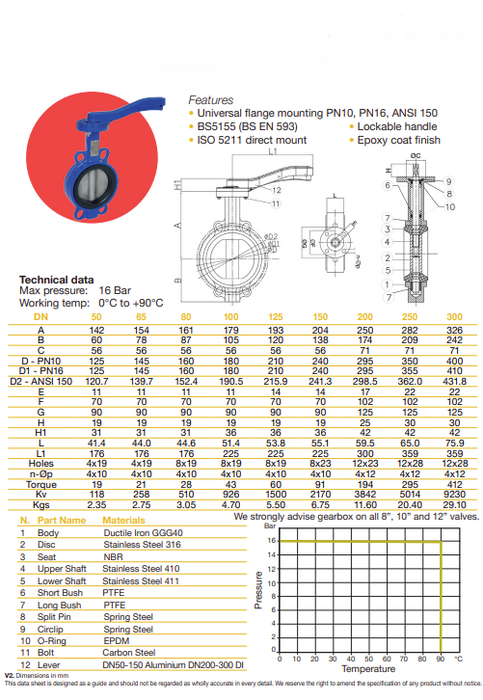

3inch DN80 Wafer Butterfly Valve with NBR Liner and 316Stainless Steel Disc and Electronic Actuator

3" (DN80) Butterfly Valve with NBR Liner, Stainless Steel Disc, ISO Top Mount, and 220V AC 50Nm HQ Series Electric Actuator

This assembly includes a 3-inch (DN80) butterfly valve equipped with an NBR (nitrile rubber) liner, suitable for a wide range of general-purpose applications including water, air, and some chemical services. The disc is made from stainless steel, providing excellent corrosion resistance and durability in demanding environments.

The valve features an ISO 5211 top flange, allowing for direct mounting of actuators without the need for additional brackets or couplings. Fitted to the valve is a 220V AC electric actuator (HQ Series), delivering 50Nm of torque for reliable and consistent operation. The actuator is ideal for automated valve control in industrial systems, with features such as position indicators, manual override, and a weatherproof housing.

This unit is suitable for use in HVAC, water treatment, process systems, and other industrial automation applications requiring remote or automatic flow control.
